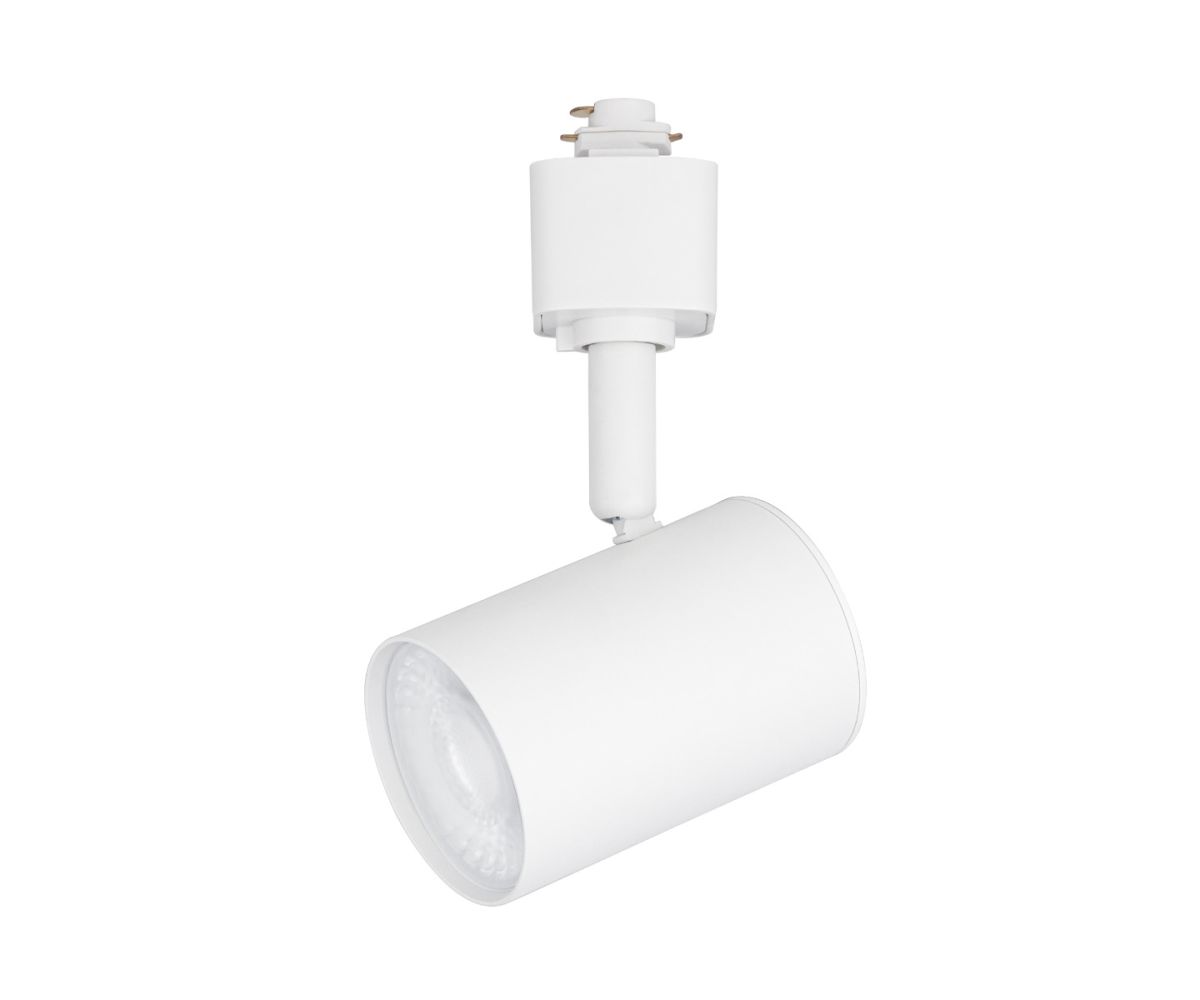

Amped LED 10W Track Head 5-CCT Selectable in White for H Track
 |
Working on a project with large quantities? Request a quote below or, Sign-up for a trade/pro account for special trade pricing on our entire catalog!
|
Amped Collection LED 10W 808 Lumens Track Head 5-CCT Selectable. Track head only - requires compatible track components and system, sold separately.
- CONSTRUCTION: Die-cast aluminum with frosted TIR lens that reduces glare. 350 degree horizontal and 90 degree vertical aiming. LED driver is concealed within the cylinder for a clean look and installation. Available in White or Black finish options.
- ENERGY EFFICIENT: This powerful energy efficient LED track head is the perfect replacement for energy hungry incandescent track heads.
- INSTALLATION: Available in H (3-Wire Track), J (2-Wire Track) and L (2-Wire Track) systems, order accordingly. Track Lighting is a great source of lighting as you can install up to 192 x 10W track heads on a 20-amp circuit, adding light very easily to your project.
- DIMMABILITY: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer.
- QUALITY: High Powered Replaceable LED Module, 10W and 808 Lumens, CRI: 90, Rated Hours: 50000, Color Temp: 5-CCT Selectable 2700K-3000K-3500K-4000K-5000K.
- STANDARDS: ETL & cETL UL #1598 listed for Dry Locations. Reliable five-year manufacturer's warranty.
East Grove Home Amped LED Track Head 5-CCT Selectable
Versatile: 350 degree horizontal and 90 degree vertical aiming equipped with a 5-CCT selectable switch for LED illumination
Dimmability: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer
Construction: Die-cast aluminum with frosted TIR lens that reduces glare in black or white finish.
H-track compatible for black finish. White finish is available in H, J (Juno 2-wire), and L (Lightolier 2-wire) style track systems.
Energy Efficient: This powerful LED track head is the perfect replacement for energy hungry incandescent track heads
Product Dimensions
| Product Height (Inches) | 5.38 |
|---|---|
| Product Length (Inches) | 3.5 |
| Product Width/Extension (Inches) | 3.5 |
| Product Weight (LBS) | 0.42 |
| Product Min Height (Inches) | 5.38 |
| Product Max Height (Inches) | 5.38 |
Shipping Dimensions
| Shipping Height (Inches) | 2.56 |
|---|---|
| Shipping Length (Inches) | 6.1 |
| Shipping Width (Inches) | 3.74 |
| Shipping Weight (LBS) | 0.480000 |
| Ships LTL | No |
Lighting Specifications
| Bulb Type | LED |
|---|---|
| Number of Bulbs | 1 |
| Color Temperature (CCT) | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Lumens (Photometric) | 1010 |
| Lumens (Delivered) | 808 |
| Color Rendering Index (CRI) | 90 |
| Beam Spread | 30 |
| Rated Hours of Use (LM-80) | 50000 |
| Bulb Included | Yes |
| Bulb Shape | LED Module |
| Bulb Base | LED Module |
Certifications
| Safety Rating | ETL & cETL UL #1598 listed for Dry Locations |
|---|---|
| Energy Star Rated | Yes |
| CEC Title 24 Compliant | Yes |
| ADA Compliant | Yes |
Electrical Specifications
| Input Voltage | 120V |
|---|---|
| Watts Per Bulb | 10 |
| Total Watts | 10 |
Dimming Specifications
| Dimmable | Yes |
|---|---|
| Dimming Compatability | ELV or TRIAC |
| Country of Manufacture | China |
|---|---|
| Base Model Number | E-H-0224 |
| Collection | Amped |
| Manufacturer | East Grove Home |
| Complete System | No |
| Manufacturer Warranty | 5 Year Warranty, 2 Year Finish Warranty |
| Color Temperature CCT | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Material Type | Aluminum |
| Product Features | CCT Color Temperature Selectable |
| Product Weight | 0.42 |
| Product Height | 5.38 |
| Product Length | 3.5 |
| Product Width | 3.5 |
| Product Diameter | 3.5 |
| Minimum Height | 5.38 |
| Maximum Height | 5.38 |
| Location Type | Dry Location |
| Interior/Exterior | Interior Use |
| Safety Rating | ETL & cETL UL #1598 listed for Dry Locations |
| Energy Star Rated | Yes |
| Title 24 Rated | Yes |
| ADA Compliant | Yes |
| Bulb Type | LED |
| Bulb Base | LED Module |
| Number of Bulbs | 1 |
| Watts Per Bulb | 10 |
| Bulb Included | Yes |
| Dimmable | Yes |
| Dimming Compatability | ELV or TRIAC |
| Input Voltage | 120V |
| Output Voltage | 24V |
| Bulb Shape | LED Module |
| Color Rendering Index | 90 |
| Lumens Photometric | 1010 |
| Lumens Delivered | 808 |
| Beam Spread | 30 |
| Rated Hours | 50000 |
