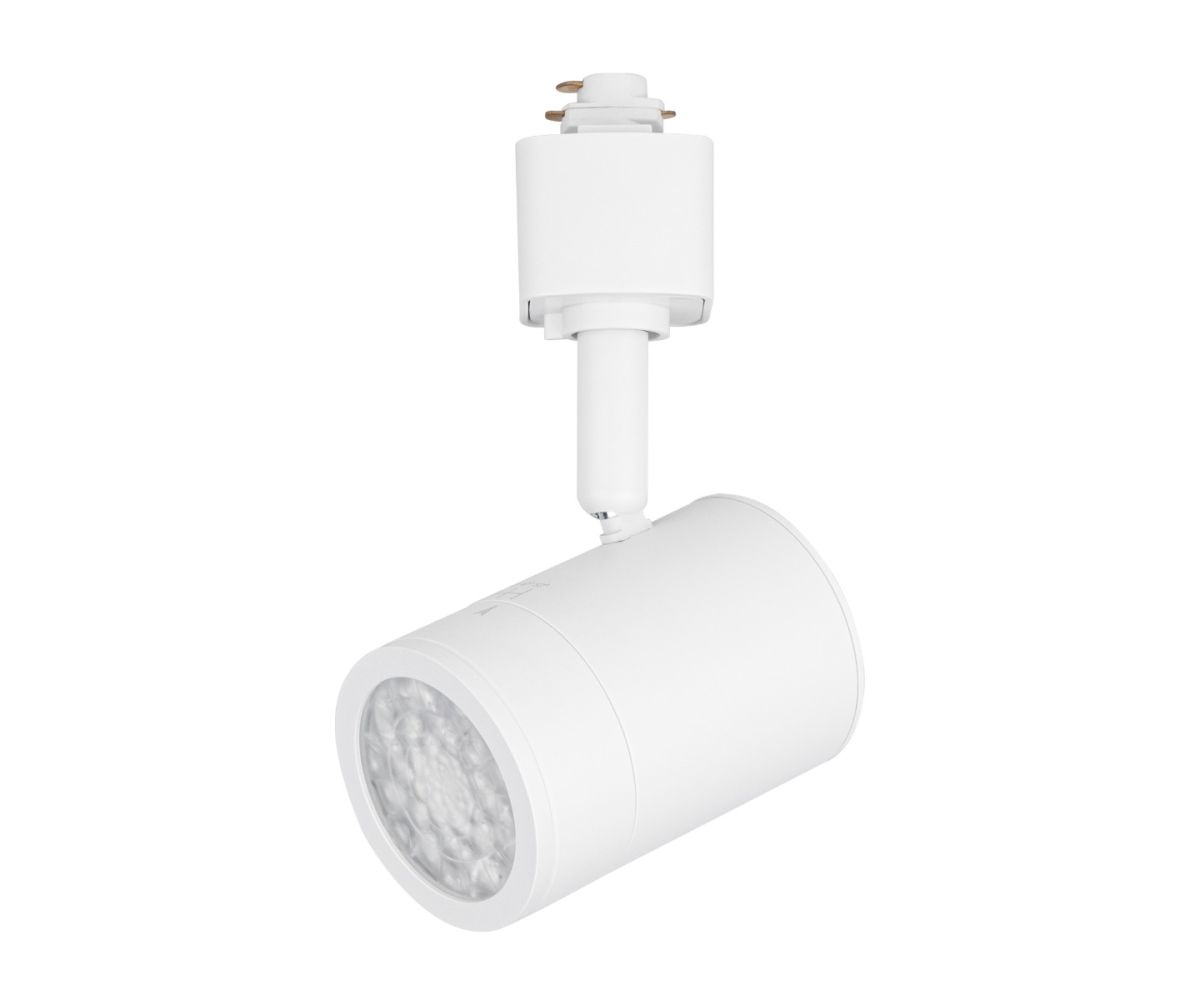

Amped LED 10W Track Head 5-CCT Selectable with 20-50 Degree Beam Adjustment in White for H Track
 |
Working on a project with large quantities? Request a quote below or, Sign-up for a trade/pro account for special trade pricing on our entire catalog!
|
Amped Collection LED 10W 660 Lumens Track Head 5-CCT Selectable and Adjustable Beam Angle 20-50 Deg. Track head only - requires compatible track components and system, sold separately.
- CONSTRUCTION: Die-cast aluminum with frosted TIR lens that reduces glare. 350 degree horizontal and 90 degree vertical aiming. LED driver is concealed within the cylinder for a clean look and installation. Available in White or Black finish options.
- FEATURES: Continuously adjustable beam angle from 20 degrees spot to 50 degrees flood by twisting the lens cover with indexed markers to set the beam angle. This powerful energy efficient LED track head is the perfect replacement for energy hungry incandescent track heads.
- INSTALLATION: Easily installs on any H-Style, 3-Wire track systems. Available in White and Black finishes. Track Lighting is a great source of lighting as you can install up to 192 x 10W track heads on a 20-amp circuit, adding light very easily to your project.
- DIMMABILITY: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer.
- QUALITY: High Powered Replaceable LED Module, 10W and 808 Lumens, CRI: 90, Rated Hours: 50000, Color Temp: 5-CCT Selectable 2700K-3000K-3500K-4000K-5000K.
- STANDARDS: ETL & cETL UL #1598 listed for Dry Locations. Reliable five-year manufacturer's warranty.
East Grove Home Amped LED Track Head 5-CCT Selectable and 20-50 Degree Beam Adjustable
Versatile: 350 degree horizontal and 90 degree vertical aiming equipped with a 5-CCT selectable switch for LED illumination
Dimmability: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer
Construction: Die-cast aluminum with frosted TIR lens that reduces glare in black or white finish.
H (Halo) track 3-wire compatible only
Energy Efficient: This powerful LED track head is the perfect replacement for energy hungry incandescent track heads
Product Dimensions
| Product Height (Inches) | 5.38 |
|---|---|
| Product Length (Inches) | 3.5 |
| Product Width/Extension (Inches) | 3.5 |
| Product Weight (LBS) | 0.42 |
| Product Min Height (Inches) | 5.38 |
| Product Max Height (Inches) | 5.38 |
Shipping Dimensions
| Shipping Height (Inches) | 2.56 |
|---|---|
| Shipping Length (Inches) | 6.1 |
| Shipping Width (Inches) | 3.74 |
| Shipping Weight (LBS) | 0.480000 |
| Ships LTL | No |
Lighting Specifications
| Bulb Type | LED |
|---|---|
| Number of Bulbs | 1 |
| Color Temperature (CCT) | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Lumens (Photometric) | 825 |
| Lumens (Delivered) | 660 |
| Color Rendering Index (CRI) | 90 |
| Beam Spread | 20 to 50 Degrees Adjustable |
| Rated Hours of Use (LM-80) | 50000 |
| Bulb Included | Yes |
| Bulb Shape | LED Module |
| Bulb Base | LED Module |
Certifications
| Safety Rating | ETL & cETL UL#1598 listed for Dry Locations |
|---|---|
| Energy Star Rated | Yes |
| CEC Title 24 Compliant | Yes |
| ADA Compliant | Yes |
Electrical Specifications
| Input Voltage | 120V |
|---|---|
| Watts Per Bulb | 10 |
| Total Watts | 10 |
Dimming Specifications
| Dimmable | Yes |
|---|---|
| Dimming Compatability | ELV or TRIAC |
| Country of Manufacture | China |
|---|---|
| Base Model Number | E-H-0324 |
| Collection | Amped |
| Manufacturer | East Grove Home |
| Complete System | No |
| Manufacturer Warranty | 5 Year Warranty, 2 Year Finish Warranty |
| Color Temperature CCT | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Material Type | Aluminum |
| Product Features | CCT Color Temperature Selectable, Beam Angle Adustable |
| Product Weight | 0.42 |
| Product Height | 5.38 |
| Product Length | 3.5 |
| Product Width | 3.5 |
| Product Diameter | 3.5 |
| Minimum Height | 5.38 |
| Maximum Height | 5.38 |
| Location Type | Dry Location |
| Interior/Exterior | Interior Use |
| Safety Rating | ETL & cETL UL#1598 listed for Dry Locations |
| Energy Star Rated | Yes |
| Title 24 Rated | Yes |
| ADA Compliant | Yes |
| Bulb Type | LED |
| Bulb Base | LED Module |
| Number of Bulbs | 1 |
| Watts Per Bulb | 10 |
| Bulb Included | Yes |
| Dimmable | Yes |
| Dimming Compatability | ELV or TRIAC |
| Input Voltage | 120V |
| Output Voltage | 24V |
| Bulb Shape | LED Module |
| Color Rendering Index | 90 |
| Lumens Photometric | 825 |
| Lumens Delivered | 660 |
| Beam Spread | 20 to 50 Degrees Adjustable |
| Rated Hours | 50000 |
| Track Compatability | H - Halo 3-Wire Track |
