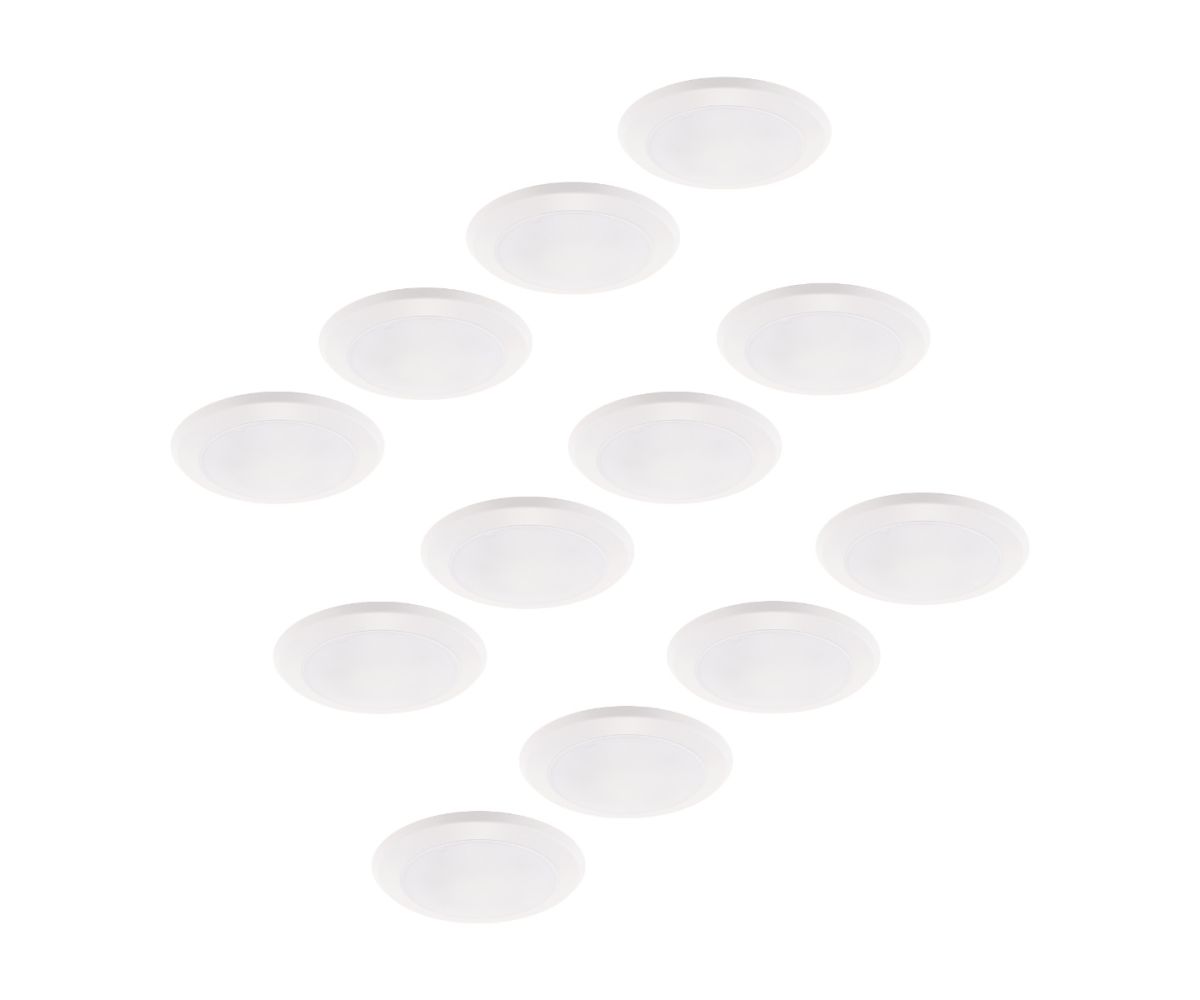

Builder Essential Disc 6in Round LED Recessed Flush Mount 10W 800 Lumens with 5-CCT 2700-3000-3500-4000-5000K in White (Pack of 12)
 |
Working on a project with large quantities? Request a quote below or, Sign-up for a trade/pro account for special trade pricing on our entire catalog!
|
Builder Essential Disc 6in Round LED Flush Mount with 5-CCT 2700-3000-3500-4000-5000K.
- CONSTRUCTION: High quality cast iron construction with a translucent diffuser.
- ENERGY EFFICIENT: This powerful energy efficient LED flush mount is bright with even illumination. Available in multi-pack options - purchase in bulk to save!
- INSTALLATION: Universal mounting bracket fits onto a standard 4/0 electrical junction box. Hardware pack included for ease of installation.
- DIMMABILITY: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer.
- QUALITY: High Powered LED Modules, 6in Size: 10W up to 800 Lumens, CRI: 90, Rated Hours: 50,000, Color Temp: CCT Selectability: 2700K, 3000K, 3500K, 4000K and 5000K Color temperatures.
- STANDARDS: ETL & cETL listed for Wet Locations. Reliable five-year manufacturer's warranty.
East Grove Home Builder Essential Disc LED Flush Mount
5-CCT Color Temperature Selectability: Choose from 2700K (warm), 3000K (soft white), 3500K (pure white), 4000K (neutral), or 5000K (cool).
Dimmability: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer.
Easy Installation
5 in. universal mounting bracket fits onto a 4/0 electrical junction box
7 in. fits 3/0-4/0 electrical junction box
Retrofit Kit - 7 in. only
Hardware pack included with retention clips and medium socket wire to install as replacement recessed can retrofit
Retrofits into a 4/5/6 inch housing
Energy Efficient: Even lit LED illumiation.
Product Dimensions
| Product Height (Inches) | 0.91 |
|---|---|
| Product Length (Inches) | 5.88 |
| Product Width/Extension (Inches) | 5.88 |
| Product Weight (LBS) | 0.33 |
| Product Min Height (Inches) | 0.91 |
| Product Max Height (Inches) | 0.91 |
| Wire Length Max Extendable (Inches) | 6 |
Shipping Dimensions
| Shipping Height (Inches) | 1.02 |
|---|---|
| Shipping Length (Inches) | 6.1 |
| Shipping Width (Inches) | 6.1 |
| Shipping Weight (LBS) | 0.440000 |
| Ships LTL | No |
Lighting Specifications
| Bulb Type | LED |
|---|---|
| Number of Bulbs | 1 |
| Color Temperature (CCT) | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Lumens (Photometric) | 1100 |
| Lumens (Delivered) | 880 |
| Color Rendering Index (CRI) | 90 |
| Beam Spread | 120 |
| Rated Hours of Use (LM-80) | 50000 |
| Bulb Included | Yes |
| Bulb Shape | LED Module |
| Bulb Base | LED Module |
Certifications
| Safety Rating | ETL & cETL UL #1598 listed for Wet Locations. |
|---|---|
| Energy Star Rated | Yes |
| CEC Title 24 Compliant | Yes |
| ADA Compliant | Yes |
Electrical Specifications
| Input Voltage | 120V |
|---|---|
| Watts Per Bulb | 10 |
| Total Watts | 10 |
Dimming Specifications
| Dimmable | Yes |
|---|---|
| Dimming Compatability | ELV or TRIAC |
| Country of Manufacture | China |
|---|---|
| Base Model Number | E-FM-042404 |
| Collection | Builder Essential Disc |
| Manufacturer | East Grove Home |
| Complete System | Yes |
| Manufacturer Warranty | 5 Year Warranty, 2 Year Finish Warranty |
| Color Temperature CCT | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Material Type | Aluminum |
| Product Features | CCT Color Temperature Selectable |
| Product Weight | 0.33 |
| Product Height | 0.91 |
| Product Length | 5.88 |
| Product Width | 5.88 |
| Product Diameter | 5.88 |
| Minimum Height | 0.91 |
| Maximum Height | 0.91 |
| Wire Length | 6 |
| Location Type | Wet Location |
| Interior/Exterior | Interior or Exterior Use |
| Safety Rating | ETL & cETL UL #1598 listed for Wet Locations. |
| Energy Star Rated | Yes |
| Title 24 Rated | Yes |
| ADA Compliant | Yes |
| Bulb Type | LED |
| Bulb Base | LED Module |
| Number of Bulbs | 1 |
| Watts Per Bulb | 10 |
| Bulb Included | Yes |
| Dimmable | Yes |
| Dimming Compatability | ELV or TRIAC |
| Input Voltage | 120V |
| Output Voltage | 24V |
| Bulb Shape | LED Module |
| Color Rendering Index | 90 |
| Lumens Photometric | 1100 |
| Lumens Delivered | 880 |
| Beam Spread | 120 |
| Rated Hours | 50000 |
