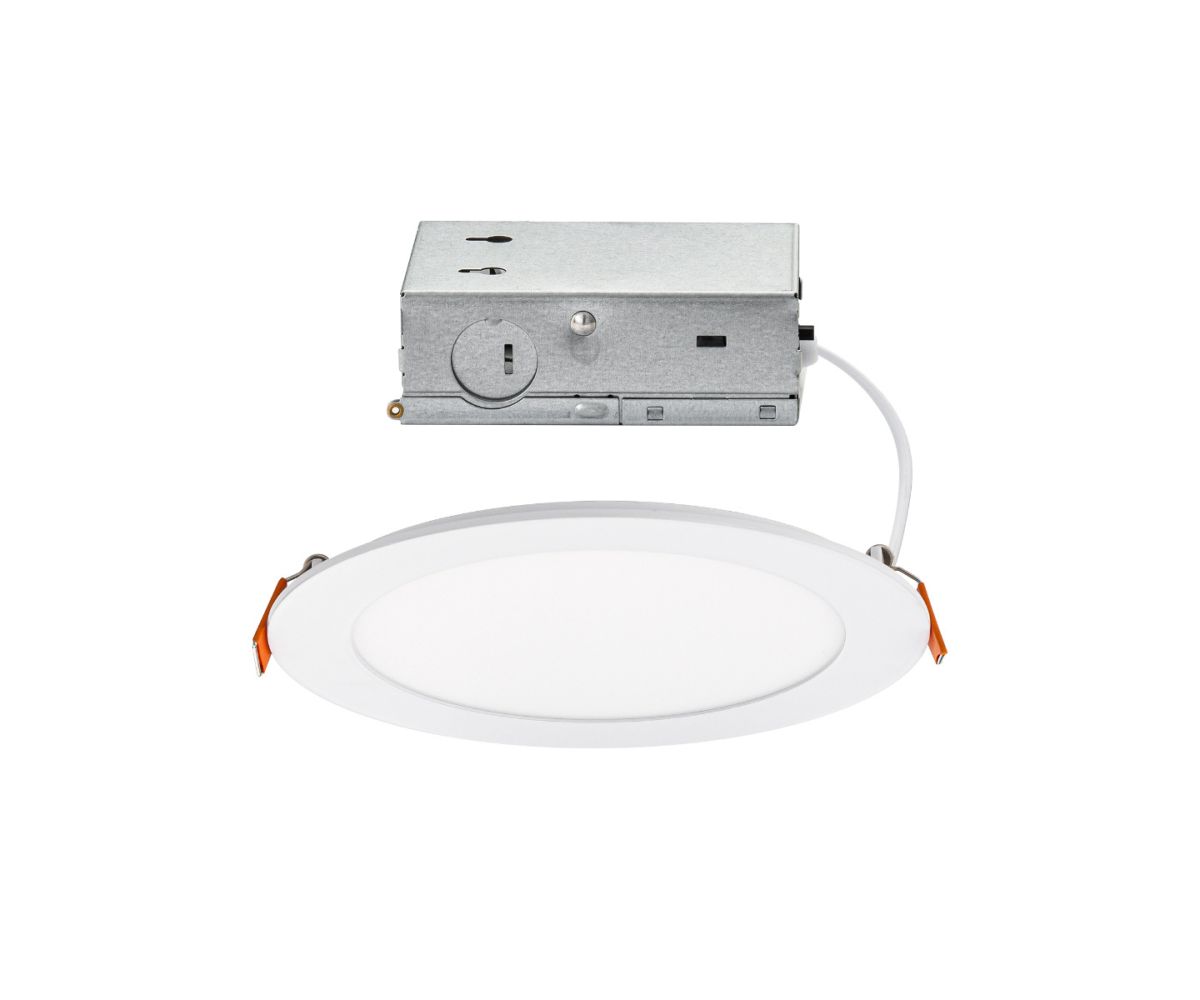

Builder Essential 5in 650 Lumens Round LED Recessed Light and Housing for Remodel or New Construction with 5-CCT 2700-3000-3500-4000-5000K in White
Collection: Builder Essential Recessed Wafer
$18.50
In stock
Only %1 left
SKU
E-R4-0224-CS-WT
 |
Working on a project with large quantities? Request a quote below or, Sign-up for a trade/pro account for special trade pricing on our entire catalog!
|
Description
Builder Essential Lumens Round LED Recessed Light and Housing for Remodel or New Construction with 5-CCT 2700-3000-3500-4000-5000K.
- CONSTRUCTION: High quality aluminum construction with a translucent diffuser. Available in a 5in size (lens is 4in) or 7in size (lens is 6in), order accordingly.
- ENERGY EFFICIENT: This powerful energy efficient LED recessed light is bright and edge-lit for even illumination. Available in multi-pack options - purchase in bulk to save!
- INSTALLATION: Easy to work with and wire - can be mounted in both new construction applications where rafters are exposed or in remodel application where ceilings are closed. Cut a hole in the ceiling with the provided 1:1 hole template; connect the junction box to the cable; use the spring clip to fix it in place on the ceiling. Hassle-free, the installation can be completed in minutes.
- DIMMABILITY: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer.
- QUALITY: High Powered LED Modules 5in Size: 9W up to 650 Lumens, 7in Size: 12W up to 1,150 Lumens, CRI: 90, Rated Hours: 50,000, Color Temp: CCT Selectability: 2700K, 3000K, 3500K, 4000K and 5000K Color temperatures.
- STANDARDS: UL & cUL listed # 1598 for Wet Locations. IC-Rated and Airtight for direct contact with insulation.
East Grove Home Builder Essential Wafer Recessed Light
Easy Installation: No can necessary, this recessed light can be mounted in new construction or in remodel application with closed ceilings
5-CCT Color Temperature Selectability: Choose from 2700K (warm), 3000K (soft white), 3500K (pure white), 4000K (neutral), or 5000K.
Dimmability: Smooth and continuous dimming to 5% with an electronic low voltage (ELV) or TRIAC dimmer.
Energy Efficient: This powerful energy efficient LED recessed light is bright and ede-lit for even illumination. Available in multi-pack options - purchase in bulk to save!
Product Dimensions
| Product Height (Inches) | 0.89 |
|---|---|
| Product Length (Inches) | 4.92; 6.89 |
| Product Width/Extension (Inches) | 4.92; 6.89 |
| Product Weight (LBS) | 0.88 |
| Product Min Height (Inches) | 0.89 |
| Product Max Height (Inches) | 0.89 |
| Wire Length Max Extendable (Inches) | 6 |
Shipping Dimensions
| Shipping Height (Inches) | 7.09 |
|---|---|
| Shipping Length (Inches) | 7.09 |
| Shipping Width (Inches) | 2.28 |
| Shipping Weight (LBS) | 0.990000 |
| Ships LTL | No |
Lighting Specifications
| Bulb Type | LED |
|---|---|
| Number of Bulbs | 1 |
| Color Temperature (CCT) | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Lumens (Photometric) | 813; 1438 |
| Lumens (Delivered) | 650; 1150 |
| Color Rendering Index (CRI) | 90 |
| Beam Spread | 60 |
| Rated Hours of Use (LM-80) | 50000 |
| Bulb Included | Yes |
| Bulb Shape | LED Module |
| Bulb Base | LED Module |
Certifications
| Safety Rating | ETL & cETL UL #1598 listed for Wet Locations |
|---|---|
| Energy Star Rated | Yes |
| CEC Title 24 Compliant | Yes |
| ADA Compliant | Yes |
Electrical Specifications
| Input Voltage | 120V |
|---|---|
| Watts Per Bulb | 9; 12 |
| Total Watts | 9; 12 |
Dimming Specifications
| Dimmable | Yes |
|---|---|
| Dimming Compatability | ELV or TRIAC |
Recessed Lighting Specifications
| Housing and Trim | Yes - Complete Kit |
|---|---|
| Recessed Type | Remodel or New Construction |
| Aperture Size (in) | 4; 6 |
| Total Trim Width (in) | 4.92; 6.89 |
| Cutout Size (in) | 4.25; 6.25 |
| IC Rated | Yes |
| Air Tight | Yes |
| Min Joist Space (in) | 14 |
| Max Joist Space (in) | 24 |
| Min Plenum Height (in) | 0.89 |
| Country of Manufacture | China |
|---|---|
| Base Model Number | E-R-0224 |
| Collection | Builder Essential Recessed Wafer |
| Manufacturer | East Grove Home |
| Complete System | Yes |
| Manufacturer Warranty | 5 Year Warranty, 2 Year Finish Warranty |
| Color Temperature CCT | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Material Type | Aluminum |
| Product Features | CCT Color Temperature Selectable |
| Product Weight | 0.88 |
| Product Height | 0.89 |
| Product Length | 4.92; 6.89 |
| Product Width | 4.92; 6.89 |
| Product Diameter | 4.92; 6.89 |
| Minimum Height | 0.89 |
| Maximum Height | 0.89 |
| Wire Length | 6 |
| Location Type | Wet Location |
| Interior/Exterior | Interior or Exterior Use |
| Safety Rating | ETL & cETL UL #1598 listed for Wet Locations |
| Energy Star Rated | Yes |
| Title 24 Rated | Yes |
| ADA Compliant | Yes |
| Bulb Type | LED |
| Bulb Base | LED Module |
| Number of Bulbs | 1 |
| Watts Per Bulb | 9; 12 |
| Bulb Included | Yes |
| Dimmable | Yes |
| Dimming Compatability | ELV or TRIAC |
| Input Voltage | 120V |
| Output Voltage | 24V |
| Bulb Shape | LED Module |
| Color Rendering Index | 90 |
| Lumens Photometric | 813; 1438 |
| Lumens Delivered | 650; 1150 |
| Beam Spread | 60 |
| Rated Hours | 50000 |
| Complete Recessed System | Yes - Complete Kit |
| Recessed Type | Remodel or New Construction |
| Recessed Aperture Size | 4; 6 |
| Recessed Trim Size | 4.92; 6.89 |
| Recessed Cutout Size | 4.25; 6.25 |
| Recessed Minimum Joist Distance | 14 |
| Recessed Maximum Joist Space | 24 |
| Recessed Min Plenum Height | 0.89 |
| Recessed IC Rated | Yes |
| Recessed Airtight | Yes |
