TurboFlow Square Bathroom Exhaust Fan with Perimeter Venting and LED Light Kit 4in Exhaust Pipe
Collection: TurboFlow
Out of stock
Only %1 left
SKU
E-EF-0425
 |
Working on a project with large quantities? Request a quote below or, Sign-up for a trade/pro account for special trade pricing on our entire catalog!
|

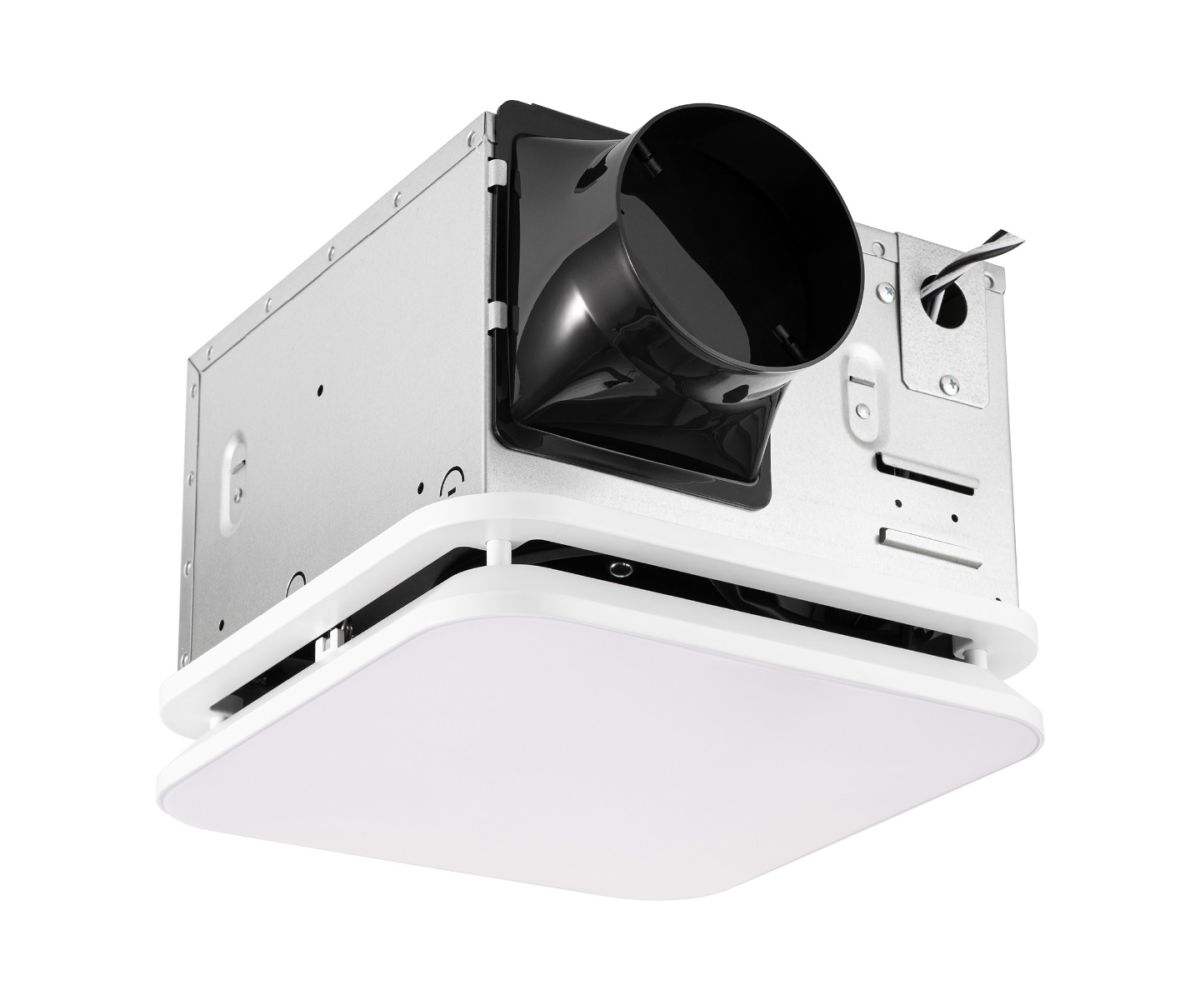

TurboFlow Square Bathroom Exhaust Fan with Perimeter Venting and LED Light Kit 1,500 Lumens 5-CCT Selectable 3-Mode 50-80-110 CFM DC Efficient Silent Motor Includes Adjustable Hanger Brackets.
- CONSTRUCTION: High quality aluminum housing with 3-speed adjustable 50-80-110 CFM DC high output energy efficient and silent motor. PC grille with perimeter venting technology and aluminum housing adjustable with hanger bars for mounting to joists. Integrated LED light kit with diffuser that maximizes brightness and eliminates any hot spots or diode imaging.
- MOTOR QUALITY: Equipped with an DC high output energy efficient and silent motor, this exhaust fan provides superior performance and easy, flexible installation.
- INSTALLATION: Install in both replacement retrofit or in new construction projects. Housing requires a 9.25in square drywall cutout with a 1.5" overlap on the grille to cover the cutout. Includes two adjustable hanger bars for joist spacing between 9.25 to 24 inches. Electrical wiring compartment with 5/8in knockouts for 120V direct wire installation.
- HEALTHY LIVING: Healthy Living Begins with Clean Indoor Air: Ensure a healthy home for your family with our high-performance ventilation systems.Â
- SPECIFICATIONS: Replaceable integrated LED light kit, 18W Power, 1,500 Delivered Lumens, 90+ CRI, 5-CCT Selectable 2700K-3000K-3500K-4000K-5000K. High output DC energy efficient motor: 3-speed adjustable 50-80-110 CFM; Ultra-silent 15db fan noise; 4in exhaust hole. Exhaust fan vent kit with and return suggested (sold separately, suggest ASIN # B0D88MKQW4) with 4in diameter air-tight connector.
- STANDARDS: ETL & cETL UL# 1598 Listed for Wet Locations. Five year manufacturer's warranty. LED Light Kit and Exhaust Fan can be wired to the same on/off switch. Separate switches suggested for independent control of light kit and exhaust fan. Smooth and continuous dimming of LED light kit to 5% using an ELV or TRIAC dimmer.
Product Dimensions
| Product Height (Inches) | 7.75 |
|---|---|
| Product Length (Inches) | 12.60 |
| Product Width/Extension (Inches) | 10.25 |
| Product Weight (LBS) | 7.70 |
| Product Min Height (Inches) | 7.75 |
| Product Max Height (Inches) | 7.75 |
| Wire Length Max Extendable (Inches) | 6 |
Shipping Dimensions
| Shipping Height (Inches) | 10.60 |
|---|---|
| Shipping Length (Inches) | 13.60 |
| Shipping Width (Inches) | 11 |
| Shipping Weight (LBS) | 8.890000 |
| Ships LTL | No |
Lighting Specifications
| Bulb Type | LED |
|---|---|
| Number of Bulbs | 1 |
| Color Temperature (CCT) | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Lumens (Photometric) | 2250 |
| Lumens (Delivered) | 1500 |
| Color Rendering Index (CRI) | 90 |
| Beam Spread | 120 |
| Rated Hours of Use (LM-80) | 50000 |
| Number of Lights | 1 |
| Bulb Included | Yes |
| Bulb Shape | LED Module |
| Bulb Base | LED Module |
Certifications
| Safety Rating | ETL & cETL UL #1598 listed for Wet Locations. |
|---|---|
| Energy Star Rated | Yes |
| CEC Title 24 Compliant | Yes |
| ADA Compliant | Yes |
Electrical Specifications
| Input Voltage | 120V |
|---|---|
| Watts Per Bulb | 18 |
| Total Watts | 50 |
Dimming Specifications
| Dimmable | Yes |
|---|---|
| Dimming Compatability | ELV or TRIAC |
| Country of Manufacture | China |
|---|---|
| Base Model Number | E-EF-0425 |
| Collection | TurboFlow |
| Manufacturer | East Grove Home |
| Complete System | Yes |
| Manufacturer Warranty | 5 Year Warranty, 2 Year Finish Warranty |
| Color Temperature CCT | CCT Color Temperature Tunable 2700K-3000K-3500K-4000K-5000K |
| Size | 13in Size |
| Style | With LED Light Kit |
| Material Type | Aluminum |
| Product Features | CCT Color Temperature Selectable |
| Product Weight | 7.70 |
| Product Height | 7.75 |
| Product Length | 12.60 |
| Product Width | 10.25 |
| Minimum Height | 7.75 |
| Maximum Height | 7.75 |
| Wire Length | 6 |
| Location Type | Wet Location |
| Interior/Exterior | Interior Use |
| Safety Rating | ETL & cETL UL #1598 listed for Wet Locations. |
| Energy Star Rated | Yes |
| Title 24 Rated | Yes |
| ADA Compliant | Yes |
| Bulb Type | LED |
| Bulb Base | LED Module |
| Number of Bulbs | 1 |
| Watts Per Bulb | 18 |
| Bulb Included | Yes |
| Dimmable | Yes |
| Dimming Compatability | ELV or TRIAC |
| Input Voltage | 120V |
| Output Voltage | 24V |
| Bulb Shape | LED Module |
| Color Rendering Index | 90 |
| Lumens Photometric | 2250 |
| Lumens Delivered | 1500 |
| Beam Spread | 120 |
| Rated Hours | 50000 |
| Number of Lights | 1 |
| Fan Sloped Ceiling | Yes |
| Fan Max Slope Pitch | 32 |
| Fan Control Type | On/Off Wall Switch |
| Fan Speed Levels | 3 |
| Fan Reversible Motor | No |
| Fan Motor Type | DC Energy Efficient |
| Fan Motor Size | 125x25 |
| Fan CFM High | 110 |
| Fan CFM Avg Weighted | 80 |
| Fan CFM Low | 50 |
| Fan RPM High | 150 |
| Fan RPM Low | 100 |
| Fan Motor Power | 32 |
| Fan Amperage | 0.32 |
| Fan Input Voltage | 120V |
| Fan Airflow Efficiency | 4 CFM/Watt |
| Fan Annual Energy Cost | $3.85 |
| Fan Sound Decibel Level | 15 |
| Fan Light Kit Adaptable | Yes |
| Fan Light Kit Cap Included | No |
| Fan Light Kit Type | LED Light Kit Included |
| Fan Light Kit Included | Yes |
| Fan Light Kit Diffuser | Acrylic |
| Fan Wall Control Included | No |
| Fan Remote Control Included | No |
